UP300E 3D Scanner

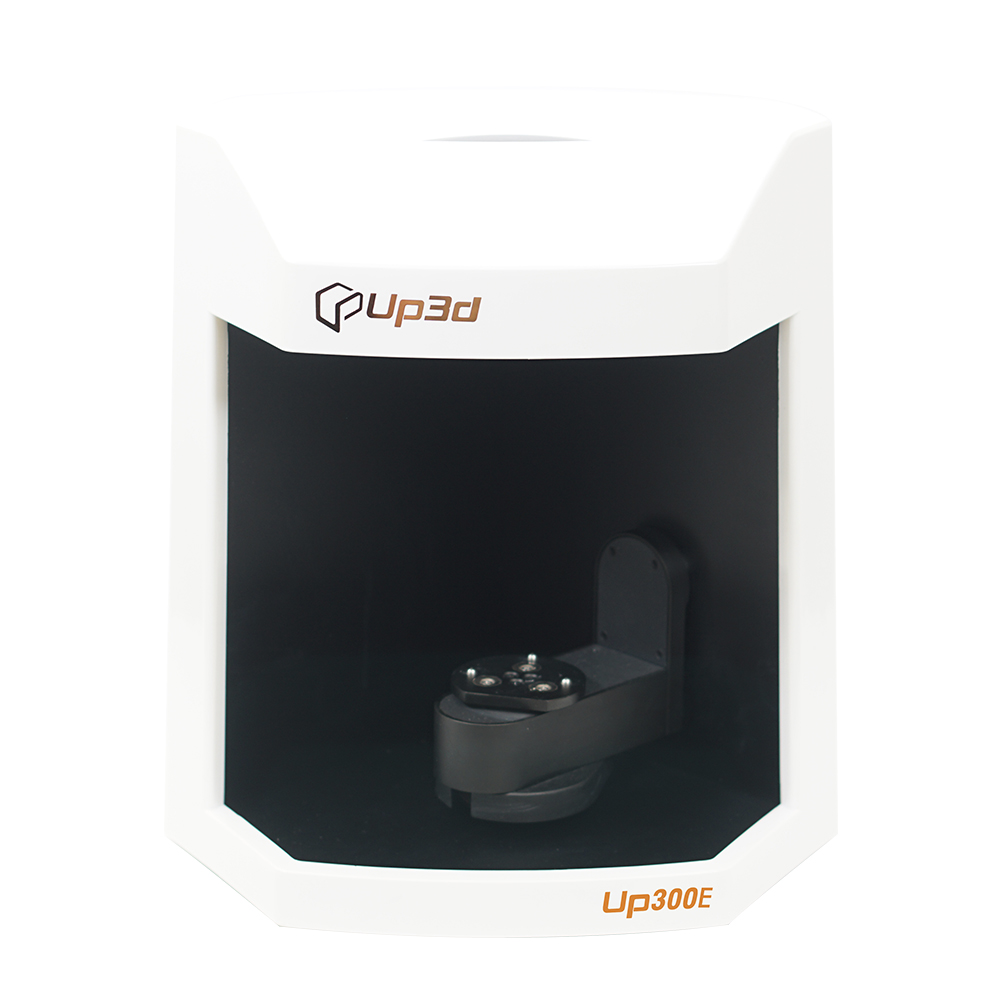

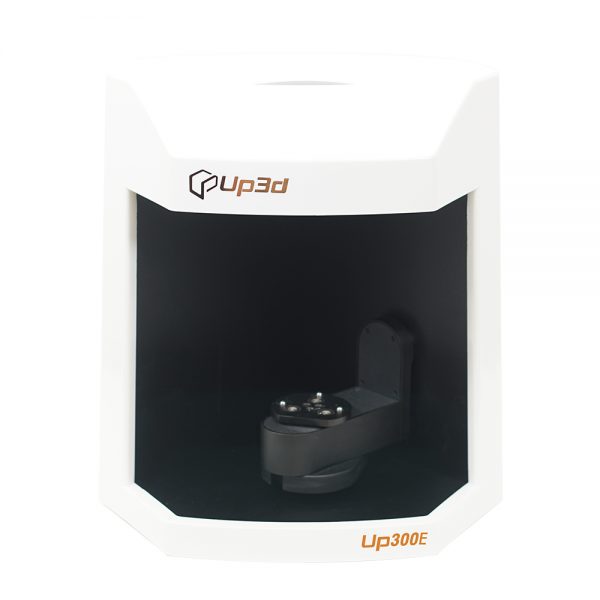

Up300E 3D SCANNER
Up300E is designed to support both shared single scanbody scan and multi-unit scanbody scan which allows intuitive and flexible scan workflow.

Multi-color projector delivers specialist for scanning of deep colored model such as deep red or blue marks. Likewise, it is easy to switch between white/ red/ blue color.

Benefits:

Implant Scan: Support both shared single scanbody scan and multi-unit scanbody scan. Intuitive and flexible scan workflow.
Big Multi-Die Plate with up to 12 position: Users can scan up to 12 dies within one scan and finish scan within 20 seconds.
Color Texture: Real color-scan of model with pencil marks helps a better and easier design of removable.
Multi-Color Projector: Specialist for scanning of deep colored model such as deep red or blue marks.
Intelligent Automatic Registration: Powerful algorithm guaranty a 99.9% registration success rate.

Spec:

• Scan full arch within 25s
• Scan upper and lower impression within 3 minutes
• 12 unit multi-die scan
• Highly cost effective
• Size: 300*330*400（mm）
• Weight: 10kg
• Scan range: 100*100*75（mm）
• Scanning mode: non contact blue light scanner
• Camera: 2*1.3MP
• Projector: Customized blue-light, support multi-color scanning
• Interface: USB 3.0
• Power supply: AC110-220V，50HZ
• Speed: Multi-die scan: 20s /Model scanning: 25s
• Precision: <10μm
• Output formats: STL/ UM/ PLY/ OBJ
• Automation: Automatic registration and intelligent hole filling
